UTarget – Make all the connection you need!

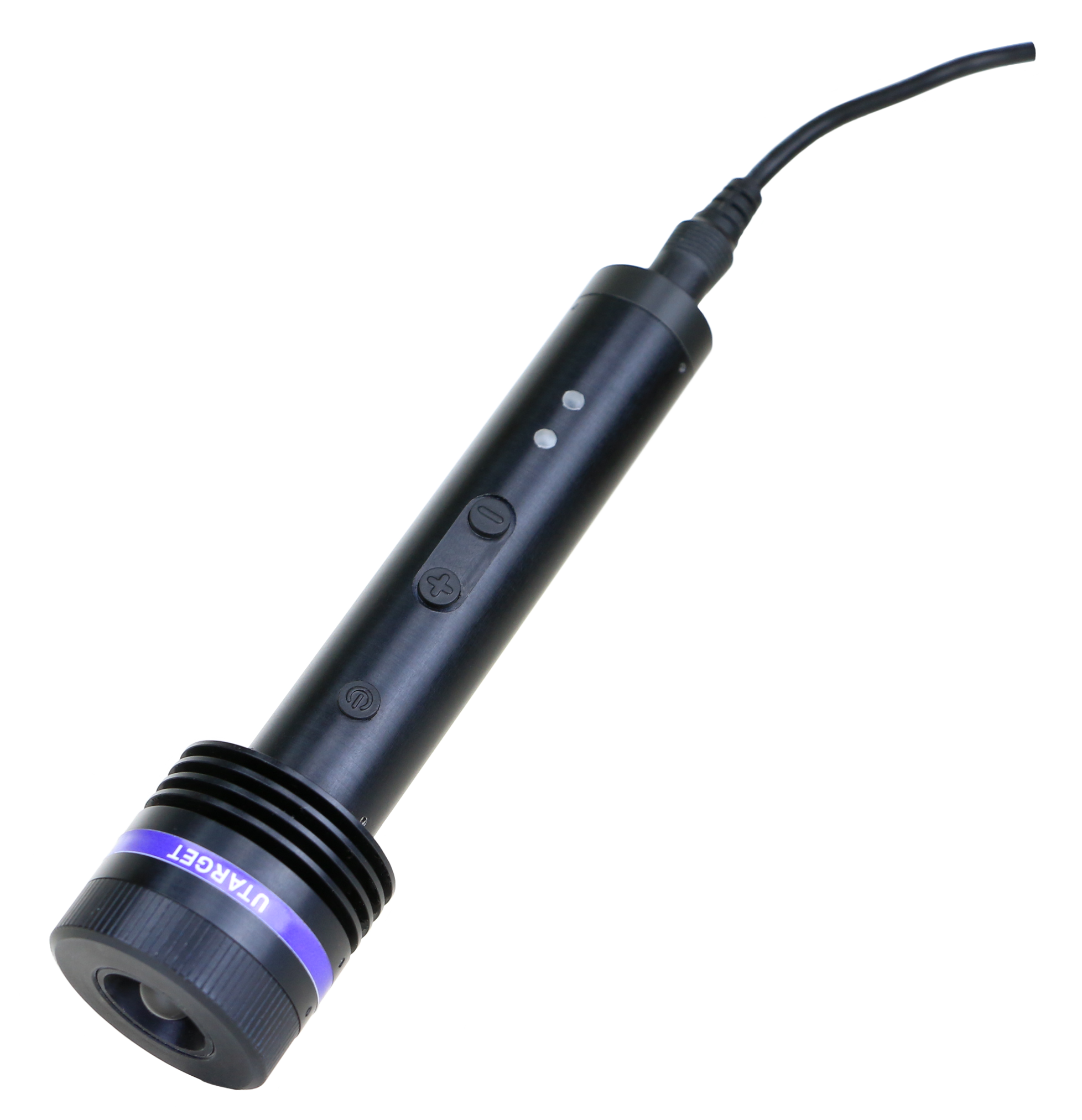

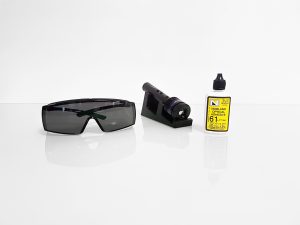

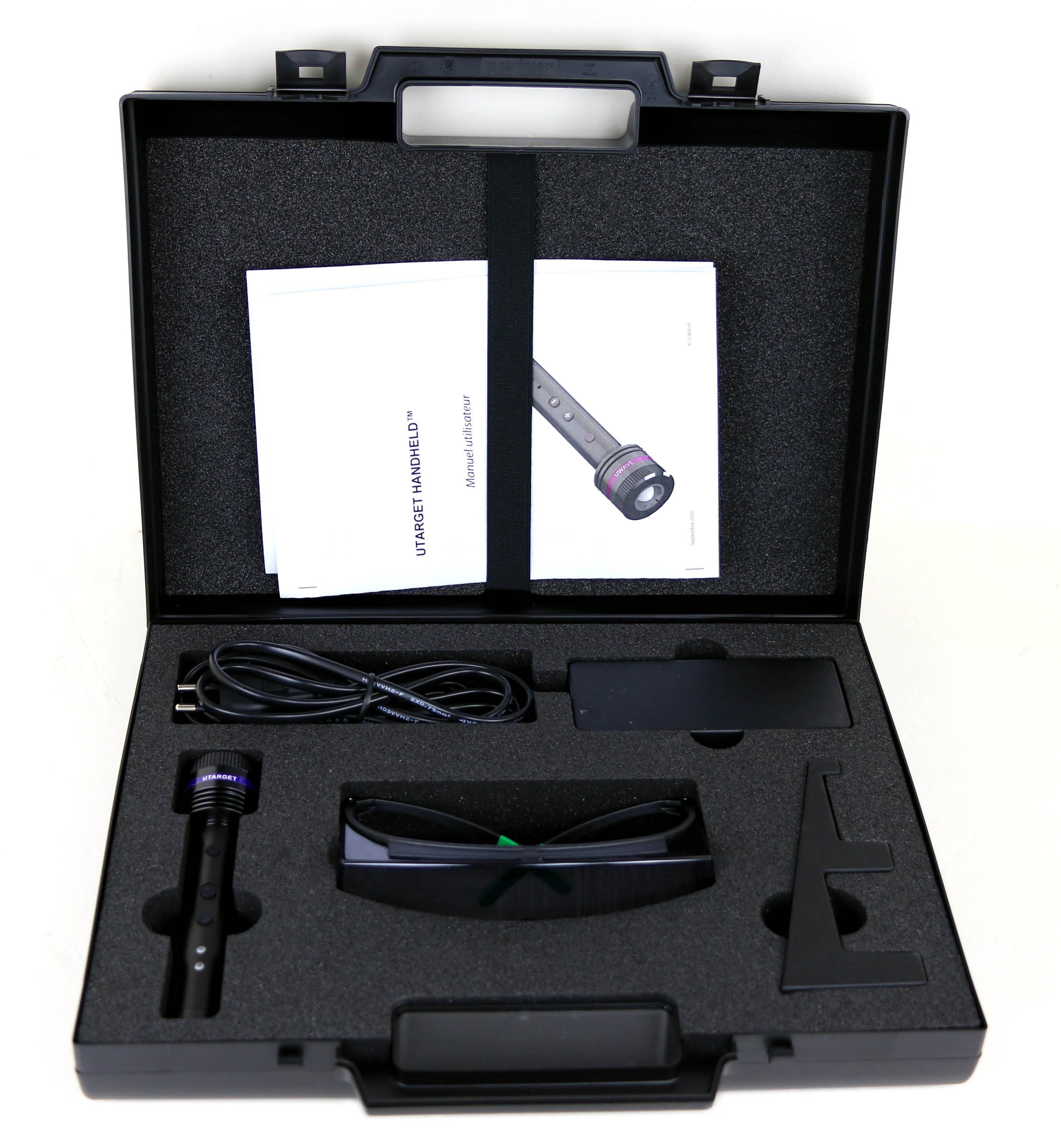

UV curing bonding kit Utarget

Having a leak? Need to do a connection?

Sometimes microfluidic is not as plug and play as wanted, and you need to experiment new things. All researcher know how relevant and useful can be the tape and it’s the same for UV glue. Indeed you have a leak? you need to do an unusual connection? what is more easy to put a bit of glue and locally fix your problem?

The UTarget kit is here for that. It’s really simple to use and will offer you a wide range of possibilities for your experiment and prototyping steps.



Benefits

  • Easy to use
  • Fast UV curing (around 30s)
  • All parameters changeable on the Utarget body
  • No need of a baking step!

Support

The UTarget Kit is simple and versatile, it can be used in a lot of different way to help you in your experiment. But BlackHole Lab remain available to help in any issue happen. We can also advise you on which connectors to choose, how to design PDMS connectors…

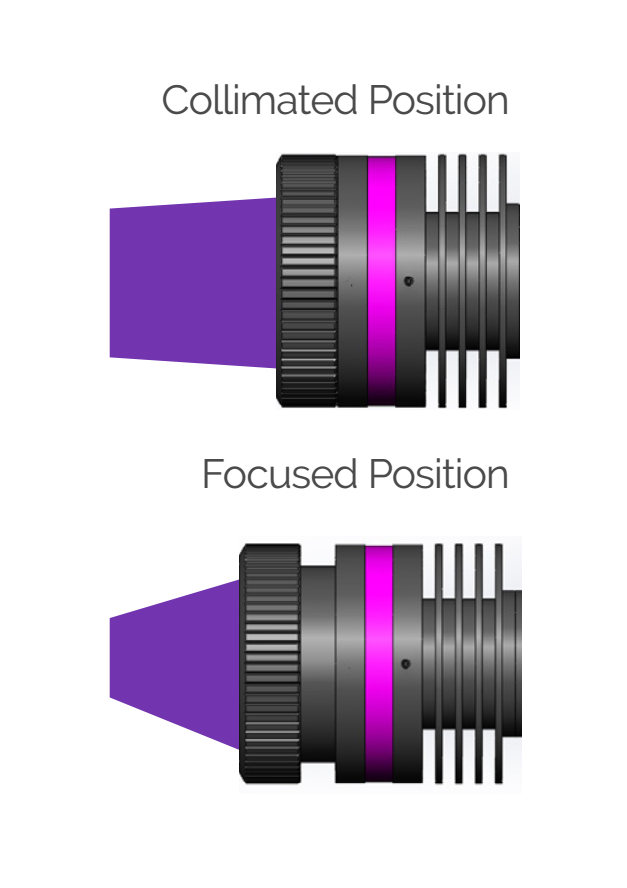

Unlike their solvent-based counterparts which use solvent evaporation to solidify, UV-sensitive glues contain photo-initiators which will cause hardening of the entire bulk when exposed to UV energy.  This UV pointer allows localized application of UV light, hence providing better precision and ease of use. Thanks to the high power the exposure take only few seconds (around 30s for most of the microfluidic application). What’s more there is no need of a backing step post process. In other words you exposed and it’s done!

Weight 130 g
Power ~ 4 W
Power supply 100V or 240V AC ; 50/60 Hz
Dimension (HxWxD) (36 x 150 x 22) mm
Wavelengths 365 nm
Max irradiance 1400mW/cm²

Non contractual pictures – BlackHole Lab reserves the right to modify any item without prior notice
